Scanning Tunneling
Microscopy
|
|
Scanning
tunneling microscopy is a microscopical technique that allows the
investigation of electrically conducting surfaces down to the atomic
scale.
In the following I will give a very short overview of the basic
principle.
|
|
|
|
|

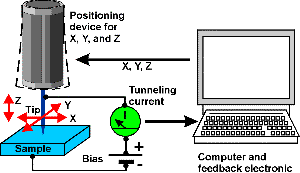

Figure 1: Basic
principle of the Scanning Tunneling Microscope
|
|
In the scanning
tunneling microscope the sample is scanned by a very fine
metallic tip. The tip is mechanically connected to the scanner, an XYZ
positioning device realized by means of piezoelectric materials.
The sample is positively or negatively biased so that a small current,
the
"tunneling current" flows if the tip is in contact to the sample. This
feeble
tunneling current is amplified and measured. With the help of the
tunneling
current the feedback electronic keeps the distance between tip and
sample
constant. If the tunneling current exceeds its preset value, the
distance
between tip and sample is decreased, if it falls below this value, the
feedback increases the distance.
The tip is scanned line by line above the sample surface following the
topography
of the sample. |
|
Tunneling Current:
The reason for the extreme magnification capabilities of the STM down
to
the atomic scale can be found in the physical behavior of the tunneling
current: |
|
|
|

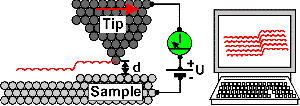

Figure 2a:
tip-sample tunneling contact
|
|
Figure
2b:
exponential behavior of the tunneling current I with distance d
|
|
The tunneling current flows across the small gap
that separates the tip from
the sample, a case that is forbidden in classical physics but that can
be
explained by the better approach of quantum mechanics: the electrons
are "tunneling" across the gap.
The tunneling current I has a very important caracteristic: it exhibits
an
exponentially decay with an increase of the gap d:
I= K*U*e -(k*d)
k and K are constants, U is the
tunneling bias
.Very small changes in the tip-sample separation induce large
changes
in the tunneling current!
This has the
consequences that:
|
Tunneling Tip:
The question I am asked most is: "How do you obtain these tips with
only one atom at the top?" In reality is relatively easy to obtain
such tips by etching or tearing a thin metal wire. I often use the
following
comparison: Imagine pouring a bucket of sand on the floor. If you
examine
the resulting conic heap in most cases you will find a single grain of
sand that
represents the outermost peak. Very seldomly you will have several
grains
exactly representing the peak together. Now take the heap of sand for
the tip and remember the exponential decay of the tunneling current.
The
tunneling current is carried and the sample surface scanned only
by this outermost grain of sand. Many of the tips that work fine in an
STM will look blunt when imaged in an optical
microscope. Only if you want so investigate a sample with a large
corrugation as for instance the islands or crystallites shown in some
images, you need a tip that is microscopically as well as atomically
sharp.
|
|
