| A Model for Hyperion
An alternative model explaining the one-of-a-kind dark crater bottoms
of Saturn's moon Hyperion
| November 6, 2005
first published in the discussion
forum "Unmanned Spaceflight" October 11, 2005
|Fig.1: Saturn's moon
Hyperion is 266 km in diameter; its appearance is unique because of its
unusually dark crater floors
|Saturn's Moon Hyperion (Fig.1) has
a very unique appearance, especially regarding its craters. The
material that shows up at the bottom of many craters is very dark,
while most crater rims are brighter (Fig.2).
The current scientific explanation is, that a thin dark layer of dust
covers the crater bottoms:
with its origin being either from
space (other Saturnian moons) or melting/sublimating dirty ice on
Hyperions surface. The dark dust would slide down the crater walls and
accumulate on the bottom of the craters.
|Fig.2: Closeup of Hyperions
|At close inspection of Cassini's
images of Hyperion I believe to see many discrepancies with the current
model for the dark crater bottoms assuming a dust layer as origin.
These discrepancies are:
- There are many (small) craters visible not only in the bright
of Hyperion, but also in the dark component. Examining the many closeup
images I could not find a single crater in the dark material that would
expose bright material beneath. If the dark component would indeed be a
more or less thin layer deposited on the crater bottoms one should find
many small craters were this thin layer was blasted away by the impact.
At least the center of a crater exposes material from beneath, so the
center of the small craters would have to be bright if the dark stuff
was just a thin layer.
- On the other hand one could assume that nearly all craters are older
than the dark layer, but then we have to explain why there are so many
craters without any trace of the black stuff.
- There are nearly no traces of the dark stuff at the upper portions of
the crater walls as well as on other level areas on Hyperions surface
that are not crater bottoms, and in particular the typical traces of
material sliding down a crater wall as one could see them on Phoebe for
Because of these discrepancies of
what I believe to see with the official explanation for Hyperion's dark
crater bottoms I developed an alternative model for Hyperion (Figure
Please note that this model is not based on any official statement, so
should not been taken as an official explanation of what we see on
Hyperion. This is solely my personal attempt of an explanation of the
processes that may alter Hyperion's surface.

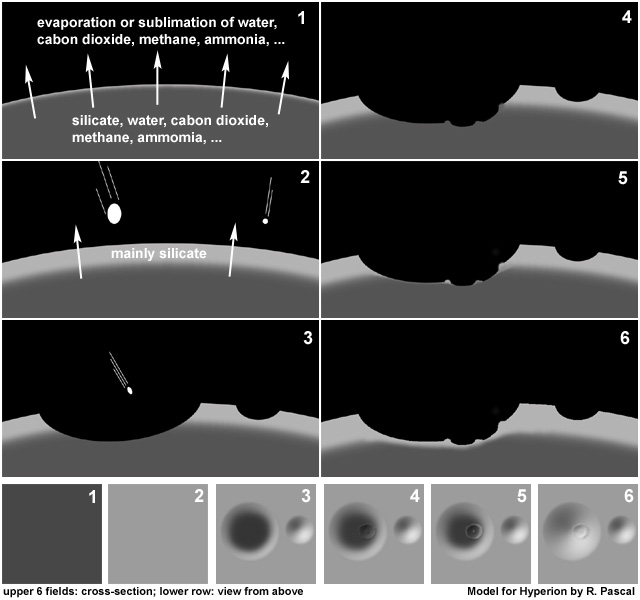

|Fig.3: Model for the
processes altering Hyperion's surface, and resulting in the dark crater
- The conical shape of the craters or landslide effects are neglected
in the drawings
- The arrows that symbolize evaporation or sublimation are only drawn
in Figs.3.1 and 3.2, in the following Figures they are left away.
The original material of Hyperion is a porous, dark mixture of
silicates (from dust to rocks), frozen water, and all the other
components that are typical for a relatively primordial body of the
solar system like carbon dioxide, methane, ammonia and other. Due to
warming by the sun, perhaps supported my micrometeorite bombardment or
by internal heating resulting from Saturn's gravitational influence,
the water and the other volatile components slowly evaporate or
This process leaves behind a brighter layer of silicate-rich dust and
rocks that covers the surface of Hyperion.
The evaporation rate slightly decreases with growing layer thickness,
but it does not stop, since the porosity of the layer still allows the
volatile components to reach the surface. The timescale for this
process is at least some million years.
If a meteor crater is deep enough to reach down into the native
material, we see this appearance that is typical for Hyperion, with the
dark, water-rich material from below exposed at its bottom.
The crater floor will slowly develop a bright surface again, since the
evaporation or sublimation should be increased if the layer of silicate
dust is missing. On the other hand, the evaporation or sublimation rate
may be reduced at the crater floor due to the originally porous
material being compacted by the pressure and heat of the impact.
Small craters within the dark material are also dark when they are
...the increased surface to volume ratio of protruding structures like
the rim or the central hill speed up the loss of water. These
structures become bright much faster than the surrounding terrain.
After a sufficient time the complete crater is bright again. The
thickness of the bright layer for a long time remains thinner than at
the older surface. This may be the reason, why in this large impact
basin more and smaller craters seem to have a dark floor than elsewhere.
